The ultimate guide to ditch lining: pros and cons

Ditch lining is a crucial technique used to enhance the efficiency and longevity of ditches, especially in irrigation, drainage, and stormwater management systems. In this post we discuss about what is a ditch and what is ditch lining.

What is the purpose of a ditch?

A ditch is a narrow channel dug into the ground for various purposes, primarily related to water management and land use. Some key purposes of a ditch include:

  1. Drainage – Ditches help remove excess water from agricultural fields, roads, and residential areas to prevent flooding and soil erosion.
  2. Irrigation – In farming, ditches distribute water to crops, ensuring proper hydration and improving yield.
  3. Boundary Marking – Ditches can serve as property or territorial boundaries, particularly in rural areas.
  4. Roadside Water Management – Along roads and highways, ditches collect rainwater and direct it away from the pavement to prevent water damage.
  5. Erosion Control – By channeling water flow, ditches help reduce soil erosion and maintain land stability.
  6. Waste Disposal – In some areas, ditches have historically been used for disposing of wastewater or runoff.

What is the purpose of a ditch?

What are the different types of ditches?

There are several types of ditches, each designed for specific purposes. Here are the main types:

1. Drainage Ditches

  • Roadside Ditches – Found along highways and roads to prevent water accumulation and road damage.
  • Agricultural Drainage Ditches – Used in farming to remove excess water from fields and prevent waterlogging.
  • Stormwater Ditches – Designed to handle rainwater runoff in urban and suburban areas.

2. Irrigation Ditches

  • Primary Canals – Large ditches that transport water from a main water source (like a river or reservoir).
  • Secondary and Tertiary Canals – Smaller ditches branching off the main canal to distribute water to fields.
  • Furrows – Shallow ditches between crop rows that guide water to plant roots.

3. Boundary or Defensive Ditches

  • Property Boundary Ditches – Used to mark land ownership, especially in rural areas.
  • Military or Defensive Ditches (Moats) – Historically used around castles or forts to hinder enemy access.

4. Erosion Control Ditches

  • Contour Ditches – Dug along the natural contours of a slope to slow water runoff and prevent soil erosion.
  • Check Dams Ditches – Feature small barriers inside to reduce water flow speed and control sedimentation.

5. Wastewater and Sewage Ditches

  • Open Sewage Ditches – Common in some underdeveloped areas to carry wastewater away from settlements.
  • Leach Ditches – Used in septic systems to filter and disperse wastewater into the soil.

6. Utility or Construction Ditches

  • Trench Ditches – Dug for laying underground utilities like water pipes, gas lines, or cables.
  • Foundation Ditches – Excavated during building construction to support foundations.

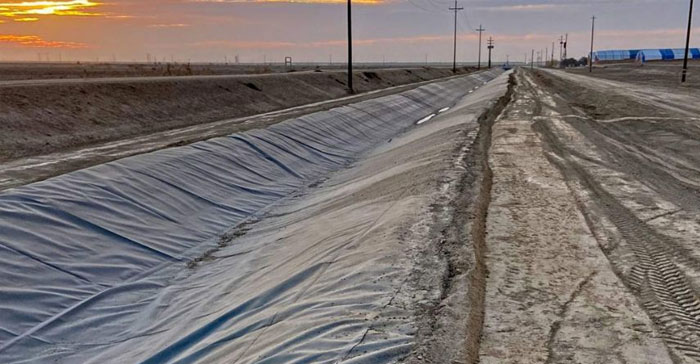

What is ditch lining?

Ditch lining is the process of covering the interior surface of a ditch with protective materials to improve its durability and efficiency. It helps prevent erosion, seepage, and sediment buildup while enhancing water flow. Lining is commonly used in irrigation, drainage, and stormwater management systems to reduce water loss and maintain structural integrity. The choice of lining material depends on factors such as soil type, water flow rate, and intended use of the ditch.

Common ditch lining materials include concrete, plastic geomembranes, clay, gravel, and vegetation. Concrete and stone linings offer long-term durability, while plastic liners provide excellent seepage control. Gravel and vegetative linings help stabilize the ditch and control erosion in natural settings. Proper ditch lining reduces maintenance needs, improves water distribution, and increases the efficiency of water management systems.

What is ditch lining?

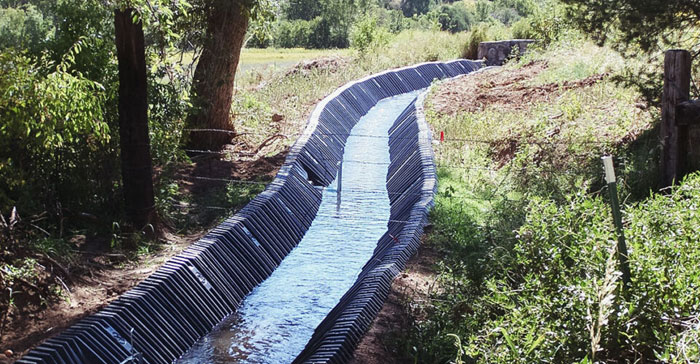

Different types of ditch liner?

Ditch liners are used to prevent erosion, control seepage, and improve the structural stability of ditches. The selection of a liner depends on factors such as soil conditions, water flow rate, cost, and maintenance requirements. Geosynthetic products have become a popular choice due to their durability, ease of installation, and effectiveness in reducing water loss.

1. Geosynthetic Liners (Geomembranes & Geotextiles)

  • Geomembranes (HDPE, PVC, LDPE, EPDM): These synthetic liners provide excellent seepage control and are widely used in irrigation and industrial applications. HDPE is highly resistant to chemicals and UV exposure, while PVC is more flexible and easier to install.
  • Geotextiles: These permeable fabrics are used to reinforce ditches, prevent soil erosion, and improve drainage. They are often combined with other liners to enhance performance.

2. Concrete Liners

  • Provide a durable and long-lasting solution for high-flow ditches.
  • Offer a smooth surface that improves water flow efficiency.
  • Require skilled labor and are more expensive to install.

3. Clay Liners

  • A cost-effective natural alternative that reduces seepage.
  • Works well in areas where clay is readily available.
  • Can shrink and crack in dry conditions, requiring maintenance.

4. Gravel or Rock Liners

  • Used for erosion control and improving drainage.
  • Suitable for stormwater management and roadside ditches.
  • Does not prevent seepage, making it less ideal for irrigation.

5. Vegetative Liners

  • Made up of grass or other plants to stabilize soil and filter runoff.
  • Environmentally friendly but requires regular maintenance.
  • Not suitable for high-flow or deep ditches.

The advantages of ditch liners

Ditch liners provide multiple benefits by enhancing the efficiency, durability, and effectiveness of water management systems. The choice of liner material depends on the specific needs of the project, but geosynthetic products, such as geomembranes and geotextiles, have become a preferred solution due to their performance and cost-effectiveness.

1. Reduces Seepage and Water Loss

Liners, especially geomembranes and clay, minimize water infiltration into the soil, ensuring more efficient water delivery in irrigation systems. This is particularly important in regions with limited water resources.

2. Prevents Erosion and Structural Damage

Lined ditches resist erosion caused by high water velocity, heavy rainfall, and soil displacement. Concrete, rock, and geotextile liners help stabilize the ditch and reduce sediment buildup.

3. Improves Water Flow Efficiency

Smooth surfaces, such as concrete or HDPE geomembranes, reduce friction and allow water to flow more efficiently, minimizing blockages and sedimentation. This is essential for irrigation and drainage systems.

4. Lowers Maintenance Costs

By preventing seepage, erosion, and vegetation growth, ditch liners reduce the need for frequent repairs and cleaning. This leads to long-term cost savings in both labor and materials.

5. Enhances Environmental Protection

Geosynthetic liners can help prevent contaminants from entering the groundwater and surrounding environment. This is particularly useful in industrial and wastewater management applications.

6. Increases Lifespan of the Ditch

Lined ditches are more durable and resistant to wear and tear, ensuring long-term functionality. Geomembranes, concrete, and composite liners extend the lifespan of ditches significantly.

7. Versatile Applications

Different liner materials can be used for various purposes, including irrigation, stormwater drainage, wastewater containment, and industrial applications. Geosynthetics offer flexibility in design and application.

The disadvantages of ditch liners

The disadvantages of ditch liners

While ditch liners provide significant benefits, they also come with certain drawbacks depending on the material used. Understanding these disadvantages can help in selecting the right lining solution for specific applications.

1. High Initial Cost

Many ditch liners, especially concrete and geomembranes, require a significant upfront investment in materials and installation. Concrete lining is particularly expensive due to labor and material costs.

2. Complex Installation Process

Some liners, such as geomembranes and concrete, require skilled labor and specialized equipment for proper installation. Improper placement can lead to leaks, cracks, or inefficiencies in water flow.

3. Risk of Cracking or Damage

  • Concrete can develop cracks over time due to temperature fluctuations and ground movement, requiring repairs.
  • Geomembranes (HDPE, PVC) can be punctured by sharp objects, UV exposure, or animal activity, leading to leaks.
  • Clay liners may shrink and crack in dry conditions, reducing their effectiveness.

4. Maintenance and Repair Challenges

While liners reduce regular maintenance needs, repairs can be difficult and costly if damage occurs. Geomembranes require patching when torn, and concrete lining may need resurfacing over time.

5. Environmental Concerns

  • Concrete production has a high carbon footprint.
  • Plastic geomembranes can degrade over time, leading to potential environmental pollution if not disposed of properly.
  • Clay and vegetative liners can be affected by weather conditions, requiring additional maintenance.

6. Limited Flexibility for Natural Drainage

Lined ditches reduce natural water infiltration, which can affect groundwater recharge and local ecosystems. This can be a concern in areas where groundwater levels need to be maintained.

7. Potential for Slippage or Displacement

If not properly anchored, geomembranes and geotextiles can shift over time due to water pressure, wind, or soil movement. Proper securing techniques are necessary to ensure long-term stability.

What is the difference between a stream and a ditch?

While both streams and ditches involve flowing water, they differ significantly in their origin, purpose, and characteristics.

1. Natural vs. Artificial

  • Stream: A natural watercourse formed by geological and hydrological processes. Streams are part of the natural water cycle and often connect to rivers, lakes, or oceans.
  • Ditch: A man-made channel constructed for specific purposes such as drainage, irrigation, or stormwater management.

2. Water Source

  • Stream: Receives water from natural sources such as rainfall, springs, or melting snow. It often flows continuously.
  • Ditch: Typically carries water from artificial sources like agricultural runoff, stormwater, or redirected groundwater. Flow may be intermittent or seasonal.

3. Ecological Role

  • Stream: Supports aquatic ecosystems, providing habitat for fish, plants, and wildlife. It plays a crucial role in maintaining biodiversity.
  • Ditch: Primarily serves functional purposes like drainage or irrigation and may not support diverse ecosystems. However, some ditches can develop natural habitats over time.

4. Size and Structure

  • Stream: Can vary in size, from small creeks to large tributaries, often with defined banks and natural meanders.
  • Ditch: Usually narrow, straight, and engineered for efficient water flow, with uniform depth and width.

5. Flow Characteristics

  • Stream: Follows a natural course and is influenced by topography and climate. Water flow can be continuous or seasonal.
  • Ditch: Often has controlled water flow based on human activity, such as agricultural irrigation or storm drainage.

6. Legal and Environmental Considerations

  • Stream: Often subject to environmental protection laws to preserve water quality and ecosystems.
  • Ditch: Typically governed by land management or water use regulations, depending on its function.

What is the difference between a stream and a ditch?

What is the difference between trenches and ditches?

While trenches and ditches are both long, narrow excavations in the ground, they differ in their purpose, depth, and construction methods.

1. Purpose

  • Trench: Primarily used for utility installations (pipes, cables, fiber optics), military defense, or construction foundations.
  • Ditch: Mainly used for water management, including drainage, irrigation, and flood control.

2. Depth and Width

  • Trench: Typically deeper and narrower than a ditch, often designed to accommodate underground infrastructure.
  • Ditch: Usually shallow and wider, designed to guide or contain water flow.

3. Construction and Stability

  • Trench: Requires precise excavation and may involve reinforcement (e.g., trench boxes) for worker safety.
  • Ditch: Can be dug with basic equipment and is less concerned with structural reinforcement.

4. Water Flow

  • Trench: May or may not contain water; often designed for underground piping rather than open water flow.
  • Ditch: Specifically designed for surface water movement or retention.

5. Temporary vs. Permanent

  • Trench: Often temporary (e.g., for laying pipes or cables) but can also be permanent (e.g., defensive trenches).
  • Ditch: Generally permanent and intended for long-term drainage or irrigation.

6. Examples

  • Trench: Utility trenches, military trenches, foundation trenches.
  • Ditch: Roadside ditches, irrigation ditches, stormwater ditches.

Conclusion

Ditch lining is an effective solution for preventing erosion, controlling seepage, and improving water flow in various applications like irrigation and drainage. While it offers significant benefits, such as reduced maintenance and increased durability, it also comes with disadvantages like high initial costs, installation complexity, and potential for damage.
