Excess water beneath the surface can cause waterlogging, erosion, and structural damage. A subsoil drainage system prevents these issues by efficiently redirecting water—learn how it works and about its benefits and types.
What is a subsoil drainage system?
A subsoil drainage system is an engineered network installed beneath the ground surface to collect and remove excess water from the soil. It typically consists of perforated pipes or drainage tiles laid in trenches filled with gravel and often wrapped in a geotextile fabric that prevents clogging. As water infiltrates the soil, it enters these perforations and is carried away—usually by gravity—to a designated outlet or sump, effectively lowering the water table. This setup is crucial for preventing waterlogging, enhancing soil aeration, and protecting structures like building foundations, roads, and retaining walls from moisture-induced damage.
The advantages of subsoil drainage systems
Subsoil drainage systems offer numerous advantages across various sectors, particularly in agriculture and construction. In agriculture, these systems help maintain optimal soil moisture levels by removing excess water, thereby preventing waterlogging and promoting healthier crop growth. This improvement in soil conditions leads to better root development and nutrient uptake, resulting in increased crop yields. Additionally, subsoil drainage prevents the accumulation of salts in the soil, allowing farmers greater flexibility in crop selection and reducing the risk of soil salinity issues.
In construction, subsoil drain play a crucial role in preserving the integrity of structures. By controlling the water table and preventing excessive moisture accumulation around foundations, these systems reduce hydrostatic pressure and minimize the risk of structural damage such as cracking or shifting. This proactive management of groundwater contributes to the longevity and stability of buildings and infrastructure. Moreover, by effectively managing subsurface water, these drainage systems help prevent soil erosion and reduce surface runoff, contributing to better environmental management and sustainability.
Various kinds of subsurface drains
Subsurface drainage systems are designed to remove excess water from the soil below the surface to improve soil conditions, prevent waterlogging, and enhance agricultural productivity. There are several types of subsurface drains, including:
- Tile Drains (Perforated Pipe Drains) – These consist of perforated pipes (plastic or clay tiles) buried underground that collect and transport excess water away from the soil.
- Mole Drains – Created by pulling a bullet-shaped implement through the soil, forming unlined channels that facilitate water movement in heavy clay soils.
- Interceptor Drains – Installed across slopes to intercept and redirect subsurface water before it reaches lower areas prone to waterlogging.
- Collector Drains – Used to gather water from multiple tile or interceptor drains and transport it to an outlet.
- French Drains – Gravel-filled trenches with a perforated pipe at the bottom, allowing water to percolate in and be redirected.
- Herringbone Drainage System – A pattern of lateral drains connected to a central main drain, resembling a fishbone, used for efficient water removal in fields.
- Gridiron Drainage System – A network of parallel drains leading into a main drain, often used for large-scale agricultural fields.
- Fan Drainage System – Multiple drains originating from a central point, useful in irregularly shaped fields or specific low-lying areas.
- Vertical Drains (Deep Wells or Boreholes) – Used in areas with high groundwater levels where water is pumped from deep wells to lower the water table.
- Sand Drains – Vertical columns of sand that facilitate drainage in fine-textured, poorly drained soils by increasing water movement.

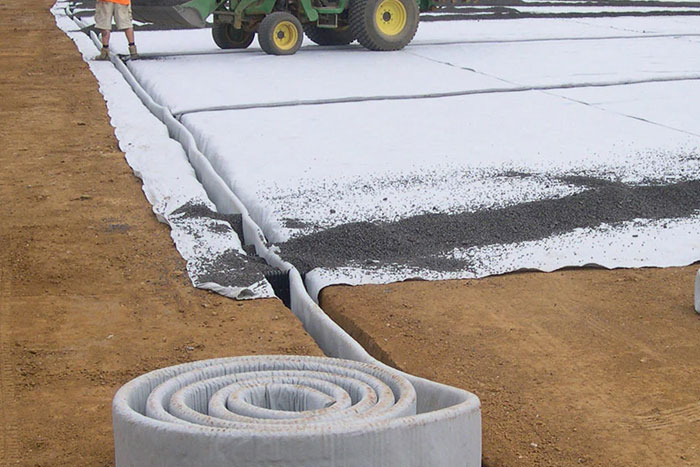

Geosynthetics used in subsoil drainage
Geosynthetic products are widely used in subsoil drainage systems to enhance water flow, prevent soil clogging, and improve system longevity. The main types of geosynthetics used in subsoil drainage include:
1. Geotextiles
- Function: Filtration, separation, and reinforcement.
- Application: Used as a filter layer around perforated pipes, French drains, or drainage trenches to prevent soil particles from clogging the drainage system.
- Types:
- Woven geotextiles – Provide high strength, ideal for load-bearing applications.
- Non-woven geotextiles – Offer excellent filtration and permeability.
2. Geogrids
- Function: Reinforcement and soil stabilization.
- Application: Used in conjunction with drainage systems to stabilize the surrounding soil, preventing erosion and maintaining structural integrity.
3. Geonets
- Function: Drainage and filtration.
- Application: Made from polymeric materials, geonets provide high drainage capacity and are often used in landfill leachate drainage, retaining walls, and subsurface drainage.
4. Geomembranes
- Function: Waterproofing and containment.
- Application: Used to line drainage systems to prevent contamination of groundwater or control water movement in sensitive areas like landfills or hazardous waste sites.
5. Geocomposites
- Function: Combines geotextiles, geonets, and/or geomembranes to optimize drainage, filtration, and reinforcement.
- Application: Used in subsurface drainage systems like roadbeds, retaining walls, and sports fields to provide superior drainage and filtration.
6. Geotubes
- Function: Dewatering and sediment control.
- Application: Used to manage water flow in drainage systems by filtering out fine particles while allowing water to pass through.

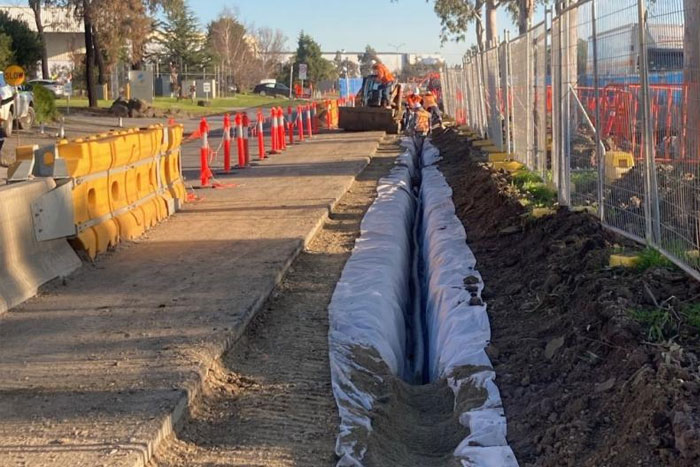

Installation of subsoil drains
The installation of subsoil drains begins with site assessment and planning to determine the most effective drainage layout based on soil type, topography, and water table levels. Trenches are then excavated to the required depth and gradient, ensuring proper water flow toward an outlet or discharge point. A layer of gravel or crushed stone is often placed at the base of the trench to facilitate water movement. Perforated drainage pipes, typically made of PVC or corrugated plastic, are then laid within the trench, ensuring that perforations face downward or sideways for optimal water collection. The pipes are connected as needed, and additional gravel is placed around them to enhance filtration and prevent clogging.
To prevent soil infiltration and maintain long-term functionality, a geotextile filter fabric is often wrapped around the pipe and gravel before backfilling the trench with soil. This fabric acts as a barrier, allowing water to pass through while blocking fine particles. Once installed, the system is tested to confirm proper drainage before the final surface restoration. Subsoil drains are commonly used in agricultural fields, roadways, sports fields, and building foundations to prevent waterlogging and improve soil stability. Proper maintenance, such as periodic flushing and inspection, ensures the long-term efficiency of the drainage system.
Conclusion
A well-designed subsoil drainage system protects soil, structures, and landscapes from excess moisture, ensuring long-term stability and efficiency. Investing in proper drainage today can save you from costly repairs tomorrow.
